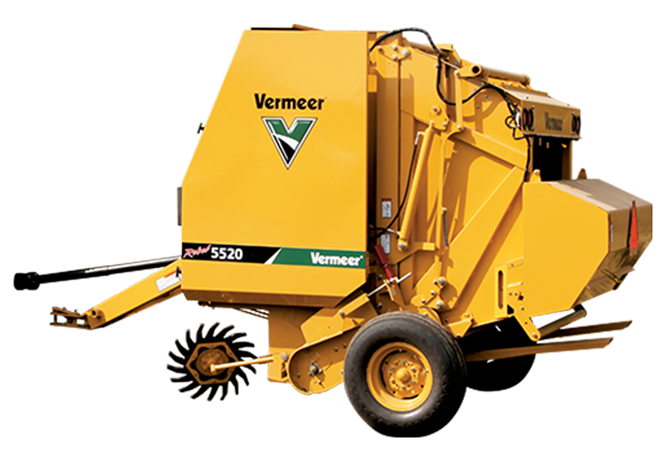

5520 Baler
These smaller 60-in (152.4-cm) diameter balers offer the perfect balance of simplicity, convenience and long-term reliability for the rural lifestyle customer.
General
| Manufacturer | Vermeer |
| Model | 5520 Baler |
| Category | Agriculture |
| Price | Request a Quote |
| Year | 2024 |
Bale Size
| Bale Diameter | 36 in - 60 in (91.4 cm - 152.4 cm) |
| Bale Width | 61in (154.9cm) |
| Maximum bale weight | 1400lbs (635kg) |
Dimensions and Weights
| Length standard | 150in (381cm) |
| Length with net | 171in (434.3cm) |
| Length with ramp | 167in (424.2cm) |
| Height | 102in (259.1cm) |
| Width with standard tires | 109in (276.9cm) |
| Tires | 12.5L-15 |
| Weight fully optioned | 5320lbs (2413.1kg) |
Bale Forming Chamber
| Drive Roller Size | 5.5 in (14 cm) |
| Drum roller size | 12in (30.5cm) |
| Idler roller size | 3.5 in (8.9 cm), 4.8 in (12.1 cm) |
| Start Roller Size | 4.5in (11.4cm) |
| Belt Type | Standard mini rough top |
| Number of Belts | 7 |
| Width of Belt | 6.8in (17.3cm) |
| Length of belt (long) | 441in (1120.1cm) |
| Length of belt (short) | 429in (1089.7cm) |
| Type of Lace | Alligator rivet |
Drive System
| Driveline | 540 rpm, standard lube, radial pin clutch |
| Bearing and Sprocket Configuration | Round drive shafts and bearings — hex shaft on drum |
Tractor Requirements
| PTO horsepower minimum | 50hp (37.3kw) |
| PTO horsepower recommended | 60hp (44.7kw) |
Pickup
| Pickup type | Standard |
| Width tooth to tooth | 57in (144.8cm) |
| Width on outside flair | 58in (147.3cm) |
| Width of Haysaver wheels *listed for select models only | 87in (221cm) |
| Tooth Bars | 4 |
| Number of Teeth | (40) double rubber-mounted |
| Flotation | Spring assist |
| Pickup Lift | Manual |
Control system
| Control system type | Optional Bale Expert™ |
| Display | Monochrome LCD screen |
| Moisture | Optional - up to 27% |
Density
| Bale density adjustments | Manual adjustment on relief valve |
| Density readings | Optional physical gauge |
| Cylinder size | 2.5 in (6.4 cm) |
Bale tie system
| Twine system | Optional |

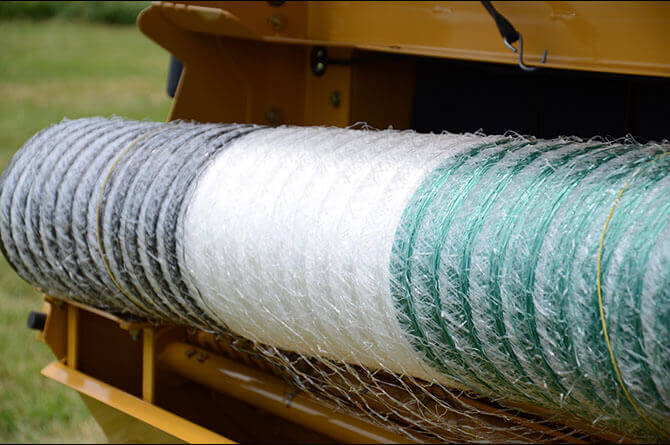

| Netwrap system | Optional |
| Net tension control | via mechanical adjustment |
Features
| Bale ramp | Optional spring-loaded |
| Fire extinguisher, safety chain | Optional |
