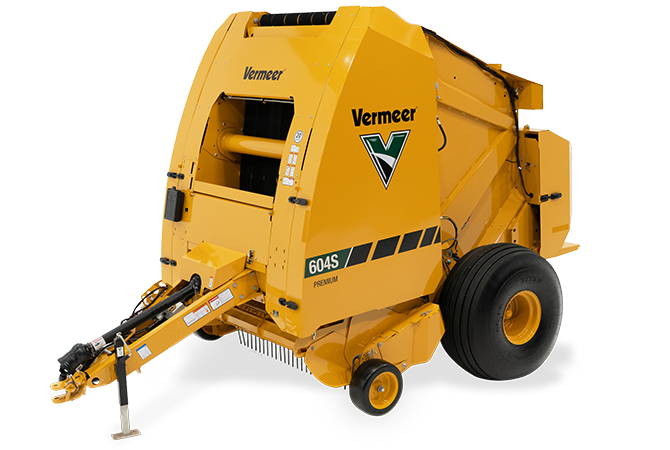

604S Premium Baler
- Good-looking bales to make you stand out from the rest
- More bales in a day with improved density and capacity
- Let the 604S Premium do the heavy lifting with automation, simple adjustments and features that just make sense
General
| Manufacturer | Vermeer |
| Model | 604S Premium Baler |
| Category | Agriculture |
| Price | Request a Quote |
| Year | 2024 |
Bale Size
| Bale Diameter | 36 in - 72 in (91 cm - 180 cm) |
| Bale Width | 47in (119.4cm) |
| Maximum bale weight | 2400lbs (1088.6kg) |
Dimensions and Weights
| Length standard | 187in (475cm) |
| Length with net | 187in (475cm) |
| Length with ramp | 208in (528.3cm) |
| Height | 121in (307.3cm) |
| Width with standard tires | 115in (292.1cm) |
| Tires | 21.5L-16.1 |
| Weight fully optioned | 8400lbs (3810.2kg) |
Bale Forming Chamber
| Drum roller size | 5.5in (14cm) |
| Idler roller size | 3.5 in, 4.8 in (8.9 cm, 12 cm) |
| Start Roller Size | 5.3in (13.5cm) |
| Belt Type | Premium mini rough top |
| Number of Belts | 6 |
| Width of Belt | 6.8in (17.3cm) |
| Length of belt (long) | 564in (1432.6cm) |
| Length of belt (short) | 557in (1414.8cm) |
| Type of Lace | Alligator rivet |
| Silage kit | Optional |
Drive System
| Driveline | Standard: 540 rpm, extended lube, automatic clutch; Optional: 1-3/8 1,000 rpm, extended lube, automatic clutch; or Optional 1-3/4 1,000 rpm, extended lube, automatic clutch |
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 80 and 100 |
| Bearing and Sprocket Configuration | Hex drive shafts and bearings |
Tractor Requirements
| PTO horsepower minimum | 85hp (63.4kw) |
| PTO horsepower recommended | 105hp (78.3kw) |
Pickup
| Pickup type | Camless wide |
| Width tooth to tooth | 69in (175.3cm) |
| Width on outside flair | 82in (208.3cm) |
| Tooth Bars | 5 |
| Number of Teeth | (70) double rubber-mounted |
| Teeth spacing | 2.8 in (7.1 cm) |
| Stripper bands | Poly |
| Flotation | Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydraulic |
| 3-year pickup warranty | Standard |

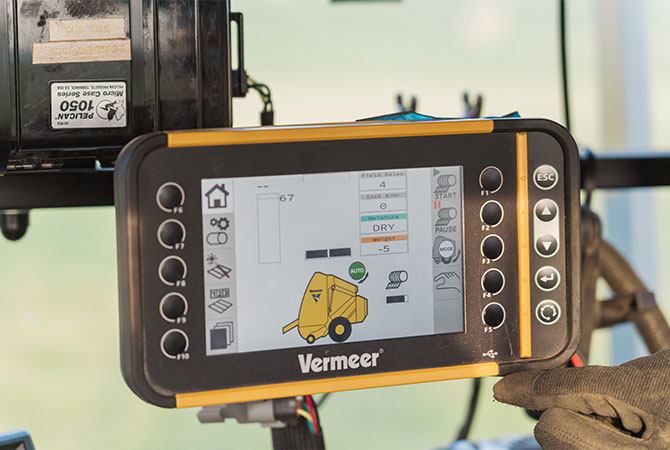

Control system
| Control system type | Atlas Pro™ control system |
| Display | 7-in (18-cm) color touch screen |
| Field Statistics | 50 fields with names |
| Field statistics download | USB |
| Bale shape indicators | Standard |
| Moisture | Standard up to 29% |
| Bales per hour | Standard |
| Auto eject | Optional |
| ISOBUS capability | Standard |
Density
| Bale density adjustments | Standard through control system monitor |
| Density readings | Digital gauge |
| Cylinder size | 3 in (8 cm) |

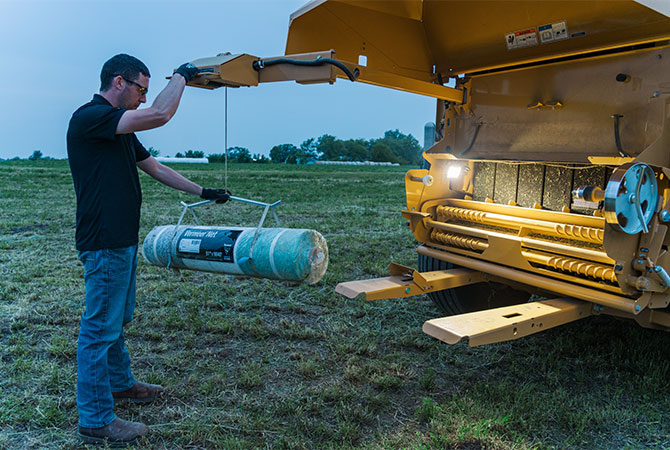

Bale tie system
| Twine system | Optional |

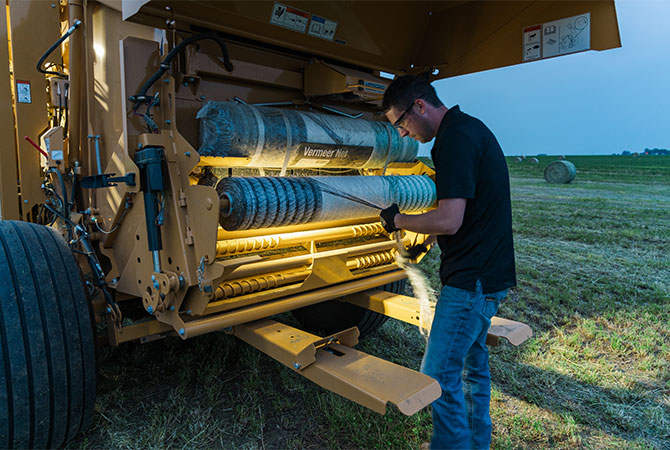

| Netwrap system | Standard |
| Net gauge via control system | Standard |
| Net tension control | Manual |
| Netlift system | Optional |
| Extra roll storage | Standard |
Features
| Bale ramp | Hydraulic |

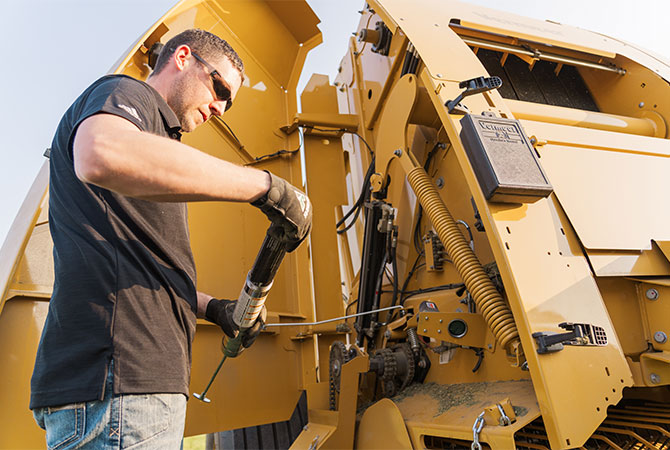

| Auto Lube greasing system | Standard |
| Automatic chain lube system | Optional |
| Right-hand door | Standard |

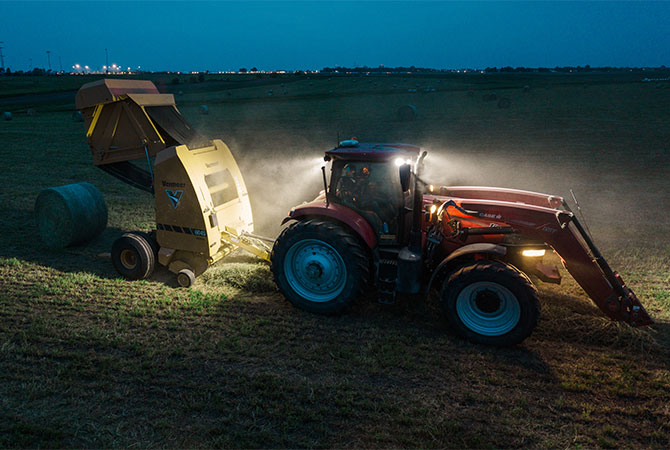

| LED maintenance lights | Standard |
| Fire extinguisher, safety chain | Optional |
| Scale kit | Optional |
