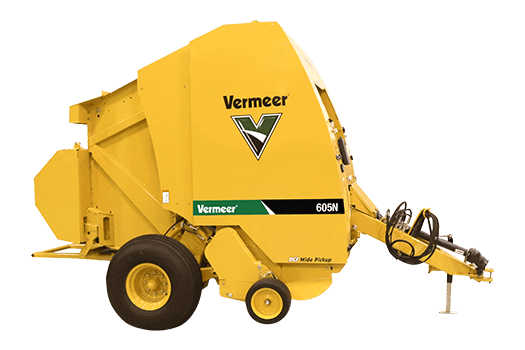

605N Baler
- Premium haymaking, simple operation
- Durable components for increased longevity
- High quality hay-making for high-quality producers
General
| Manufacturer | Vermeer |
| Model | 605N Baler |
| Category | Agriculture |
| Price | Request a Quote |
| Year | 2024 |
Bale Size
| Bale Diameter | 36 in - 72 in (91.4 cm - 182.9 cm) |
| Bale Width | 61in (154.9cm) |
| Maximum bale weight | 2400lbs (1088.6kg) |
Dimensions and Weights
| Length standard | 166in (421.6cm) |
| Length with net | 195in (495.3cm) |
| Length with ramp | 195in (495.3cm) |
| Height | 117in (297.2cm) |
| Width with standard tires | 114in (289.6cm) |
| Width with optional tires | 129in (327.7cm) |
| Tires | Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire |
| Weight fully optioned | 8600lbs (3900.9kg) |
Bale Forming Chamber
| Drive Roller Size | 5.5 in (14 cm) |
| Drum roller size | 12in (30.5cm) |
| Idler roller size | 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm) |
| Start Roller Size | 4.5in (11.4cm) |
| Belt Type | Premium mini rough top |
| Number of Belts | 8 |
| Width of Belt | 6.8in (17.3cm) |
| Length of belt (long) | 540in (1371.6cm) |
| Length of belt (short) | 533in (1353.8cm) |
| Type of Lace | Alligator rivet |
| Silage kit | Optional |
Drive System
| Driveline | 540 rpm, standard lube, friction clutch; or 1000 rpm, cut-out clutch |
| Torque protection pickup | Radial pin clutch or friction with slip-sensing |
| Roller chains | Single 50, 60 and 80 |
| Bearing and Sprocket Configuration | Hex shaft and bearings |
Tractor Requirements
| PTO horsepower minimum | 80hp (59.7kw) |
| PTO horsepower recommended | 100hp (74.6kw) |
Pickup
| Pickup type | Cammed wide |
| Width tooth to tooth | 77in (195.6cm) |
| Width on outside flair | 90in (228.6cm) |
| Tooth Bars | 10 |
| Number of Teeth | (65) double rubber-mounted |
| Teeth spacing | 3-1/16 in (7.8 cm) |
| Stripper bands | Steel |
| Flotation | Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydraulic |
Control system
| Control system type | E-Link Pro |
| Display | 7 in (17.8 cm) color touch screen |
| Field Statistics | 20 customers with 10 fields each |
| Field statistics download | USB |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bales per hour | Standard |
Density
| Bale density adjustments | Standard |
| Density readings | Physical gauge |
| Cylinder size | 3 in (7.6 cm) |
Bale tie system
| Twine system | Optional |
| Netwrap system | Optional |
| Net tension control | via mechanical adjustment |
| Extra roll storage | Standard |
Features
| Bale ramp | Optional hydraulic |

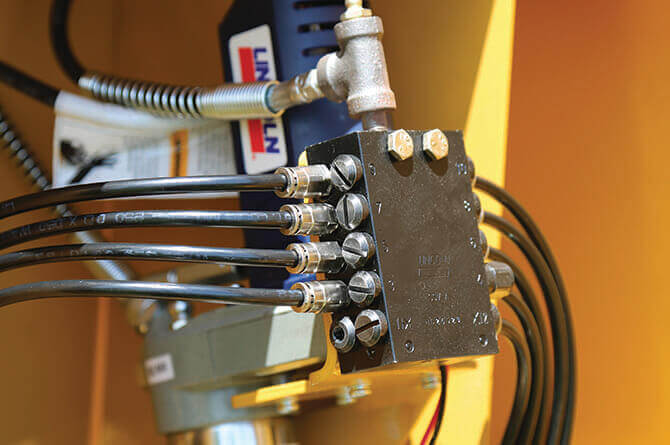

| Auto Lube greasing system | Optional |
| Grease bank | Standard |
| Automatic chain lube system | Optional |
| Right-hand door | Standard |
| LED maintenance lights | Optional |
| Fire extinguisher, safety chain | Optional |
