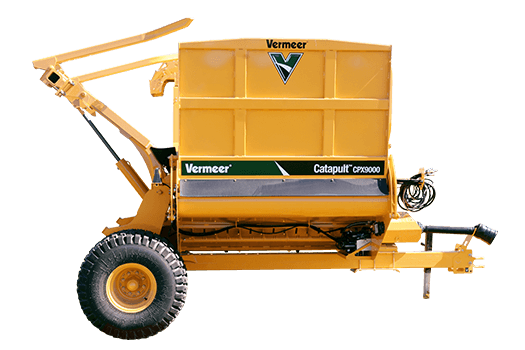

CPX9000 Bale Processor

The Catapult® CPX9000 bale processor is a machine that offers power, versatility and easy operation. The Catapult processor allows material to be thrown 60 ft – 100 ft (18.3 m – 30.5 m), whether that be up and over feed bunks in a cattle operation or for land reclamation and erosion control purposes. Hydraulic controls make this machine easy to use, giving operators the ability to choose how the spout is angled and how the crop is distributed. The Catapult processor is available only at participating dealers.

General

Manufacturer Vermeer
Model CPX9000 Bale Processor
Category Agriculture
Price Request a Quote
Year 2024

Dimensions and Weights

Length 15.6ft (4.8m)
Height 10ft (3m)
Transport Width 8.4ft (2.6m)
Working Width 19.8ft (6m)
Weight 7460lbs (3383.8kg)
Drawbar Weight 2500lbs (1134kg)
Axle adjustment 12 in (30.5 cm) each axle
Tires 16L-16.1SL 6 SofTrac II
PTO horsepower recommended 150hp (111.9kw)
PTO horsepower maximum 210hp (156.6kw)
PTO speed 1000rpm
Hydraulic Type 2 double-acting
Hydraulics Pressure 2000psi (137.9bar)
Hydraulic flow rate 8gpm (30.3L/min)
PTO horsepower minimum 110 hp (82 kW) with automatic bale feed; Without automatic bale feed, use recommended PTO horsepower
Bale rotation 3 roller chains with bolt-on cross slat
Bale size capacity (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m)
Bale weight capacity 2500lbs (1134kg)
Cut Control Bar Adjustment Hand lever with 5 settings
Cut Control Bar Quantity 7
Flail description 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring
Flail Drum Diameter 26.8in (68.1cm)
Flail Drum Length 78in (198.1cm)
Flail Drum Speed 1000rpm
Flail Drum Quantity 30
Discharge Direction Right and left hand, a 260-deg rotation
Blower (2) 38.6 in (98 cm) blower fans (1500 rpm front and 1000 rpm rear)
Fan speed - front 1500rpm
Fan speed - rear 1000rpm
Horizontal spread distance Up to 100 ft (30.5 m)
Safety Chain Optional
Torque Protection - Driveline 2 shear hubs
Material containment kit Optional
Powered sidewall Standard
Automatic bale feed system Standard
Camera kit Optional
High-wear resistance liner Optional
