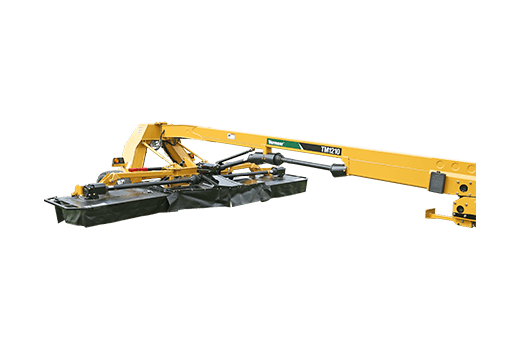

The TM1210 trailed mower is ideal for operators who want to cut more hay in less time, with a 17.7-ft (5.4-m) cutting width and a 9-ft (2.7-m) transport width. Built with convenient features, the TM1210 takes the stress out of operating, transporting and maintaining a large trailed mower. Take a peek at the features below and you’ll see what we mean. The TM1210 delivers big-time productivity with big-time convenience.
| Manufacturer | Vermeer |
| Model | TM1210 Trailed Mower |
| Category | Agriculture |
| Price | Request a Quote |
| Year | 2024 |
| Transport Height | 76in (193cm) |
| Transport width - standard | 9.1ft (2.8m) |
| Transport width with flotation tires | 9.8ft (3m) |
| Transport Length | 25.2ft (7.7m) |
| Cutting Width | 17.7ft (5.4m) |
| Working Height | 76in (193cm) |
| Working Width | 23.9ft (7.3m) |
| Working Length | 19.8ft (6m) |
| Total Weight | 6275lbs (2846.3kg) |
| Tongue Weight | 1820lbs (825.5kg) |
| Suspension | Hydraulic |
| Torque Protection | Driveline: friction disc clutch |
| Tires | Standard 31x13.5-15; Optional 480/45x17 flotation tire |
| Tongue/hitch | 2-point quick hitch with swivel gearbox, category II or III N |
| Drive PTO | 540 or 1000 rpm |
| PTO horsepower recommended | 95hp (70.8kw) |
| Hydraulic Type | 3 double-acting (2 double-acting with optional kit) |
| Hydraulic Pressure | 1850psi (127.6bar) |
| Hydraulic flow rate | 6gpm (22.7L/min) |
| Cutter bar type | Q3® |
| Cut height | 1 in - 3 in (2.5 cm - 7.6 cm) |
| Number of Discs | 12 |
| Disc Diameter | 23in (58.4cm) |
| Disc Speed | 2690rpm |
| Number of Blades | 24 |
| Angle Adjustment | Hydraulic pitch control |
| Quick Clip® blade retention system | Standard |
| Quick-Change™ shear ring | Standard |
| Curtain material | 1400 g/m2 polyester woven material with flexible PVC covering |
| 3-year limited cutter bar warranty | Standard |
| Optional swath formation | Optional swathwheel |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
| Highway Lights | Standard |
