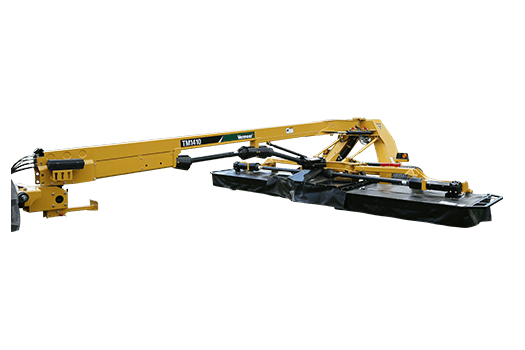

TM1410 Trailed Mower

With a cutting width of 20.8 ft (6.3 m), the TM1410 trailed mower is the largest trailed mower in our fleet made for large haymaking operations that need to maximize productivity in the field. It’s big on convenience, too. Operating, transporting and maintaining a large pull-behind mower should always be this simple. The big question: How does it mow? With smart features like a nitrogen-charged accumulator suspension system, it delivers a consistent, clean cut as you cover more acres in a day.

General

Manufacturer Vermeer
Model TM1410 Trailed Mower
Category Agriculture
Price Request a Quote
Year 2024

Dimensions and Weights

Transport Height 76in (193cm)
Transport width - standard 9.1ft (2.8m)
Transport width with flotation tires 9.8ft (3m)
Transport Length 25.2ft (7.7m)
Cutting Width 20.8ft (6.3m)
Working Height 76in (193cm)
Working Width 27.1ft (8.3m)
Working Length 19.8ft (6m)
Total Weight 6660lbs (3020.9kg)
Tongue Weight 1940lbs (880kg)
Suspension Hydraulic
Torque Protection Driveline: friction disc clutch
Tires Standard 31x13.5-15; Optional 480/45x17 flotation tire
Tongue/hitch 2-point quick hitch with swivel gearbox, category II or III N
Drive PTO 1000 rpm
PTO horsepower recommended 105hp (78.3kw)
Hydraulic Type 3 double-acting (2 double-acting with optional kit)
Hydraulic Pressure 1850psi (127.6bar)
Hydraulic flow rate 6gpm (22.7L/min)
Cutter bar type Q3®
Cut height 1 in - 3 in (2.5 cm - 7.6 cm)
Number of Discs 14
Disc Diameter 23in (58.4cm)
Disc Speed 2690rpm
Number of Blades 28
Angle Adjustment Hydraulic pitch control
Quick Clip® blade retention system Standard
Quick-Change™ shear ring Standard
Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
3-year limited cutter bar warranty Standard
Optional swath formation Optional swathwheel
Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
Highway Lights Standard
